How do I make this shape

Postby batata003 » Tue Mar 15, 2016 11:18 pm

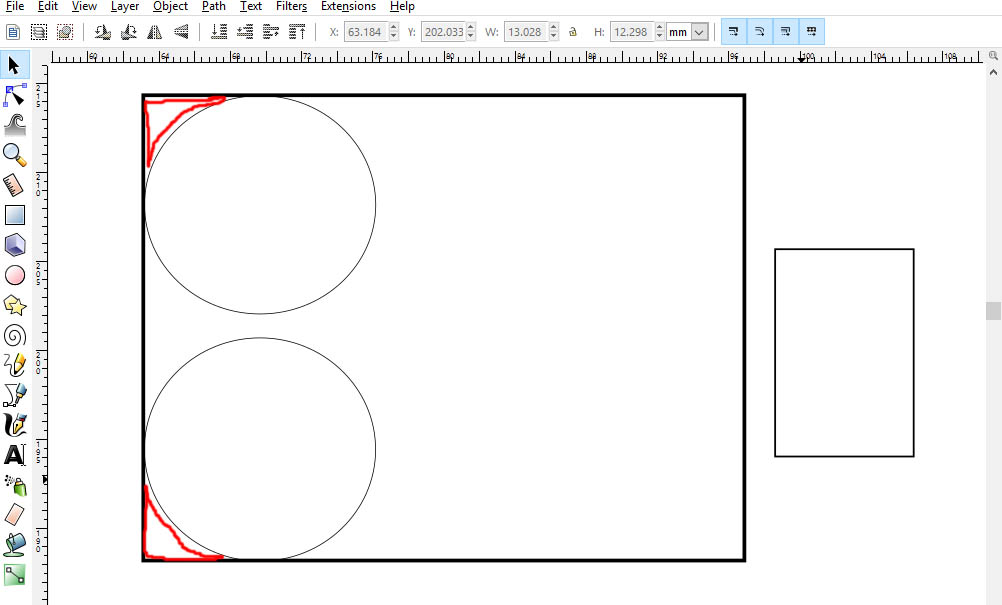

Please check the image attached. I need to produce the red shape using the circle and the rectangle. How do I do that?
Attachments
Top
Polygon
Posts: 393
Joined: Thu Dec 19, 2013 3:27 am

Re: How do I make this shape

Postby Polygon » Wed Mar 16, 2016 3:36 am

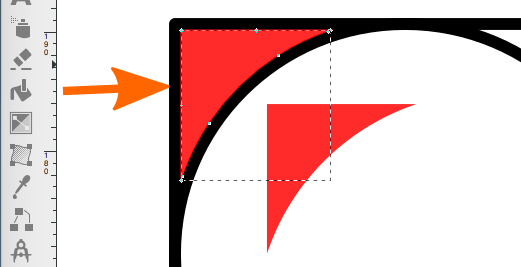

The quickest easiest but not most accurate way is to zoom in that portion till it fills the screen and use the paint bucket to fill the gap:


Cheers
P.
Top
batata003
Posts: 10
Joined: Tue Mar 15, 2016 11:15 pm

Re: How do I make this shape

Postby batata003 » Wed Mar 16, 2016 9:30 am

nice good idea! But as I see, in this case the remaining object (red) will have the area of the original object minus the width of their lines, correct? I really need precision in this, so how can I make this remaining object with exact difference of those shapes?
Top
User avatar
Espermaschine
Posts: 892
Joined: Thu Jun 05, 2014 9:10 pm

Re: How do I make this shape

Postby Espermaschine » Wed Mar 16, 2016 9:33 am

'Difference' with rectangle and circles, then 'Break apart' or delete nodes. (make sure everything is properly aligned)
Last edited by Espermaschine on Wed Mar 16, 2016 9:45 am, edited 1 time in total.
Top
Lazur
Posts: 4717
Joined: Tue Jun 14, 2016 10:38 am

Re: How do I make this shape

Postby Lazur » Wed Mar 16, 2016 9:38 am

Convert circle to path (Ctrl+Shift+C),
use the node tool -change tangent nodes cusp, delete unnecessary nodes, snap one node to the rectangle's corner, and set two segments linear.
Top
Polygon
Posts: 393
Joined: Thu Dec 19, 2013 3:27 am

Re: How do I make this shape

Postby Polygon » Wed Mar 16, 2016 10:21 am

batata003 wrote:nice good idea! But as I see, in this case the remaining object (red) will have the area of the original object minus the width of their lines, correct? I really need precision in this, so how can I make this remaining object with exact difference of those shapes?

Then here´s a quick way:
Last edited by Polygon on Wed Mar 16, 2016 10:33 am, edited 1 time in total.
Top
Lazur
Posts: 4717
Joined: Tue Jun 14, 2016 10:38 am

Re: How do I make this shape

Postby Lazur » Wed Mar 16, 2016 10:25 am

^--Nice!
Top
User avatar
Espermaschine
Posts: 892
Joined: Thu Jun 05, 2014 9:10 pm

Re: How do I make this shape

Postby Espermaschine » Wed Mar 16, 2016 10:28 am

^
^
Phwoar, thats a nice trick !
Top
User avatar
brynn
Posts: 10309
Joined: Wed Sep 26, 2007 4:34 pm
Location: western USA
Contact:
Contact brynn

Re: How do I make this shape

Postby brynn » Wed Mar 16, 2016 7:10 pm

I'd go with Esper's suggestion to use Difference.
Top
batata003
Posts: 10
Joined: Tue Mar 15, 2016 11:15 pm

Re: How do I make this shape

Postby batata003 » Wed Mar 16, 2016 11:46 pm

Really nice :)
Top
