Want to squash graphic without squashing text (only moving it)

Postby seans_potato_biz » Wed Feb 15, 2017 11:19 pm

I have copied and pasted some stuff from another program into Inkscape. The text is recognised as text and is editable. I would like to squash the graphic to fit onto the page but I don't want the text to be resized (only repositioned proportionately so it stays in the right place). Is there a way to achieve this?

Win 7/10, Inkscape 0.92.2

We don't inherit the Earth from our parents; we borrow it from our children.

Moini
Posts: 3381
Joined: Mon Oct 05, 2015 10:44 am

Re: Want to squash graphic without squashing text (only moving it)

Postby Moini » Thu Feb 16, 2017 12:28 am

You'll need to ungroup, then select the objects that you want to resize, then resize, then reposition the text. Or you can resize, then change the font size.
Something doesn't work? - Keeping an eye on the status bar can save you a lot of time!

Inkscape FAQ - Learning Resources - Website with tutorials (German and English)

theozh
Posts: 437
Joined: Fri Mar 23, 2012 6:30 pm

Re: Want to squash graphic without squashing text (only moving it)

Postby theozh » Thu Feb 16, 2017 6:20 am

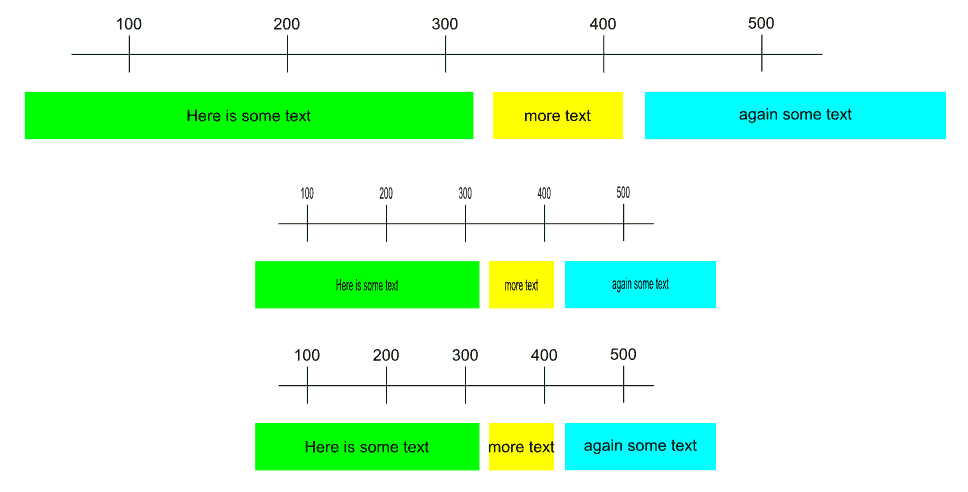

One way to "compress" your drawing in width e.g. to 50% (or x%) but keeping the text the same and at the same time minimizing the necessary steps of repositioning text could be:

1. select all objects (bars and text) (they should be individual, not grouped)
2. Transform (Shift+Ctrl+M) | Scale Tab
3. uncheck "Scale proportionally" and uncheck "Apply to each object separately"
4. Set Width e.g. 50% (or x%), Height 100%
5. Press "Apply". Everything is compressed to 50% (or x%)
6. Now select all text and objects by Shift+MouseClick which you don't want to be compressed
7. Transform (Shift+Ctrl+M) | Scale Tab
8. Set Width 200% (or (10000/x)%), Height 100%
9. check "Apply to each object separately"
10. Press "Apply"
At least, the positions of the uncompressed text will be "almost" ok...
