Is there a way to see the order of the nodes?

Postby leena » Thu Feb 02, 2017 6:49 pm

Hello,

I'm currently trying to create my handwriting in inkscape with effects that show the words "being written." I have gotten my letters down to a small number of nodes each and the letter strokes display, but I want them to start and end in a specific order. How can I tell which of my nodes comes first and last, and what is the number of each node?

Any feedback is appreciated.

User avatar
Xav
Posts: 1209
Joined: Fri May 08, 2009 1:18 am
Location: UK
Contact:

Re: Is there a way to see the order of the nodes?

Postby Xav » Thu Feb 02, 2017 8:22 pm

The easiest approach I can think of is the "Number Nodes" extension (Extensions > Visualise Path > Number Nodes...). This will replace your path with numbered points, so you might want to duplicate your path first in order to see the numbers on top of the original path.
Co-creator of The Greys and Monsters, Inked - Inkscape drawn webcomics
Web SiteFacebookTwitter

Moini
Posts: 3381
Joined: Mon Oct 05, 2015 10:44 am

Re: Is there a way to see the order of the nodes?

Postby Moini » Fri Feb 03, 2017 4:41 am

To find the start node, you can switch to node tool and hit 'Tab'.

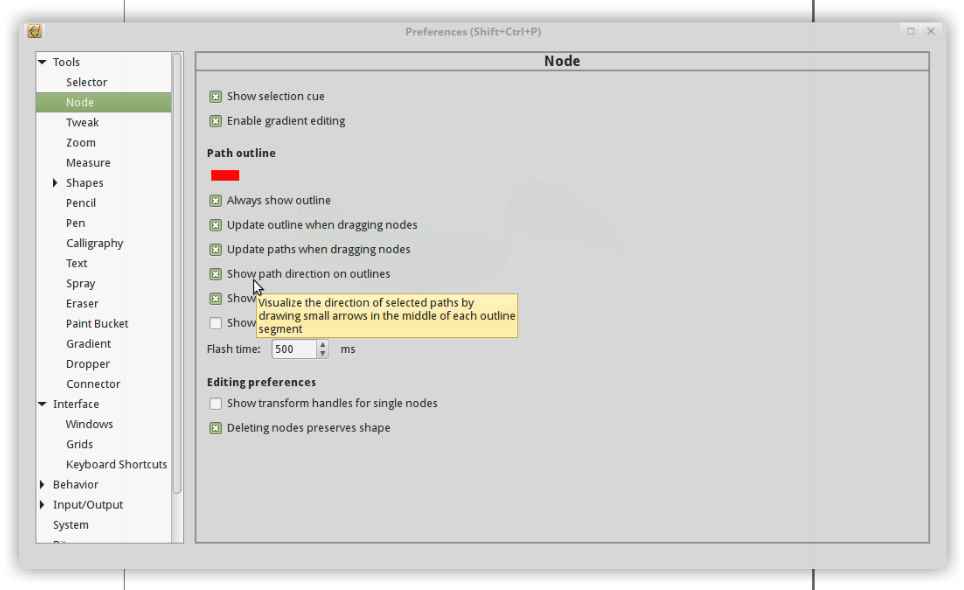

To see the direction of the path, activate this option in the node tool's options (double-click on node tool icon to get there quickly):
